J.P. Joans’ original videos from the tour of that time, now with Dave’s audio commentary! Went back to the original footage for higher resolution.
View Video Transcript
0:01
this footage was taken in
0:05
2010 and that explains why it's not in
0:09
4k and why the video is a little shaky
0:12
and such because it was done on an
0:14
ordinary camera or a cell phone 13 years
0:18
ago now by JP Jones at a press tour of
0:22
the Jefferson North assembly plant or
0:24
jnap or Jefferson North which was then
0:28
just starting to make the 2011 Jeep
0:30
Grand Cherokee which was a big deal at
0:32
the time now what you're seeing is a
0:34
very small amount of this huge plant and
0:36
here's an outside shot from Jefferson
0:39
Avenue to show what it looked like and
0:41
this plant is close to the Mac Avenue
0:44
engine plants I really can't convey the
0:47
scale very easily as for the Grand
0:50
Cherokee itself you could be forgiven if
0:52
you thought that you were looking at a
0:53
Chrysler 300C it is really nice in there
0:57
very elegant design
1:03

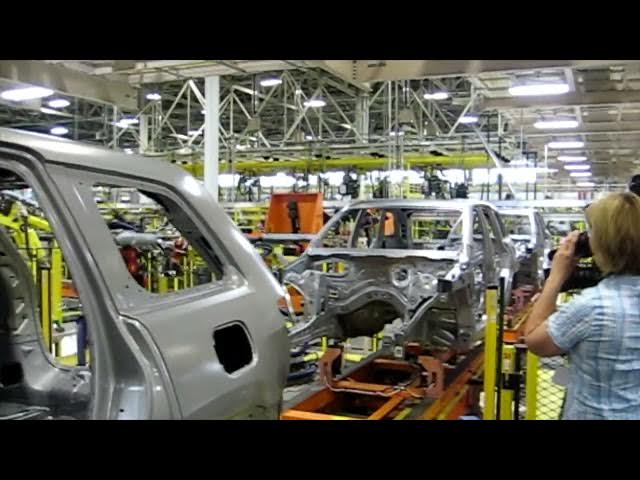

so here we are back inside the plant and
1:05
inside it's very very noisy outside it's
1:08
dead silent and you can't hear a thing
1:10
which is really pretty amazing so here
1:12
are the robots and what they appear to
1:14
be doing is either welding without any
1:18
visible Sparks or otherwise sealing
1:21
openings in these bodies and they do
1:23
that automatically this used to be done
1:25
in you know in the' 70s this was largely
1:28
done by human beings and it's become all
1:30
robotized so these plants that used to
1:32
have enormous numbers of workers are now
1:35
enormous numbers of robots and far fewer
1:38
workers obviously there are advantages
1:41
in terms of the robots being far more
1:43
predictable in what they do as long as
1:45
you program them properly they can
1:47
actually do a better job of assembly a
1:50
more consistent job of assembly up there
1:52
you can see the flashes as they're
1:54
welding so it's a pretty impressive
1:56
operation just a quick little Arc weld
1:58
from the robots as they go through spot
2:01
by spot making sure everything is put
2:03
together properly so every weld is a
2:05
perfect weld so that that's you know
2:08
keep in mind that this is 13 years ago
2:10
and even by then Chrysler had been
2:13
designing their plants entirely on
2:16
computer using 3D programs so that they
2:19
could test all the robot movements to
2:22
the extent of their ability they could
2:24
make sure that the robots didn't hit
2:26
people or other robots that there was no
2:28
interference between robots and posts or
2:32
other equipment they could test
2:34
everything and make sure it all worked
2:36
while still in the computer program
2:39
before they actually put anything
2:41
together and the other thing to consider
2:43
is that even back then Chrysler had Flex
2:47
manufacturing they were beginning that
2:50
before daimer took over and the idea
2:54
there is that you have the same robot
2:56
and it can change the tools on the tips
2:59
of its hand hands so to speak and have
3:01
different programming for various
3:03
motions so that it can make more than
3:06
one thing more than one vehicle and they
3:08
actually had it so that they could make
3:10
two related vehicles and one completely
3:12
unrelated vehicle on the same assembly
3:14
line without dropping a stitch so to
3:17
speak without having any gaps and this
3:20
was really pretty amazing so in this
3:22
plant they would be able to make Grand
3:23
Cherokees and Durango and here you see
3:26
the vehicles as they go on the overhead
3:29
conveyors
3:30
now they use a skillet system don't ask
3:33
me what the difference is because I
3:35
don't know but having the vehicles go
3:38
overhead is a great help ergonomically
3:41
things have really Advanced since the
3:43
60s and70s not to mention incredibly
3:46
Advanced obviously since the original
3:49
assembly lines and then the rolling
3:51
assembly lines Ransom olds being the
3:54
first to do a uh assembly line with his
3:57
curv Dash olds mobile and then Henry for
4:00
famously doing the first one with
4:02
conveyors and Ford probably wouldn't
4:04
have been able to do that except that uh
4:07
employee of Thomas Edison's when he was
4:10
doing his mining operations that never
4:12
netted him a single penny but actually
4:14
cost him pretty much his whole Fortune
4:16
from the Electric Light Industry one of
4:19
his employees developed the rubberized
4:21
conveyor belts to replace the old canvas
4:24
ones and so Ford was able to make use of
4:27
those which made it practical to do
4:30
automobile assembly on a conveyor belt
4:33
assembly line so this is the body drop
4:37
and this is one of the cooler things my
4:40
guess is that they're just slowly
4:41
ramping up and that eventually these
4:44
body drops would be much much faster
4:46
than what you're seeing they had really
4:48
just started production when this tour
4:50
began so everything's moving a bit
4:53
slower than it normally
4:55
would and of course there is Media here
4:58
and you don't want to have things going
5:00
at full speed while the media are around
5:02
because there is a chance of
5:04
injury really I find it pretty amazing
5:07
that they still do body drops with
5:09
unibody cars you know the uh
5:11
transmission and engine are mounted
5:14
together on one assembly and then the
5:16
body drops onto it merges with it to
5:19
make one vehicle still requires a bunch
5:23
of manual intervention right now but
5:25
that's probably going to get worked out
5:27
as production continues
5:36
way up above in a lot of places there
5:38
are these plant status
5:40
indicators it's a pretty good way of
5:43
knowing exactly what parts of the plant
5:45
are doing well and which parts are doing
5:48
poorly as you can see carts move
5:51
automatically on their own uh holding
5:54
engine and transmission assemblies and
5:57
such this is actually the entire lower
5:59
part of the vehicle before it gets
6:01
joined in the body
6:03
drop so here JP is in a little cart with
6:07
other journalists and uh he's just going
6:10
alongside the assembly line you can see
6:12
all the racks of Parts waiting to be
6:14
installed there's an interesting
6:17
Japanese system called pokeo where you
6:19
give the workers exactly the right
6:21
number of parts for each vehicle and if
6:22
you have any parts left over or if you
6:24
run out of Parts you know that you've
6:26
done something wrong that's a very
6:28
Demming way of thinking
6:30
very clever so if somebody's supposed to
6:32
put on five bolts they get a baggie of
6:34
five volts for each car or a little box
6:36
of five
6:37
volts lot of the workers um you know you
6:40
look at this and it looks like nobody's
6:42
doing anything and you get that you know
6:44
Union Factory workers are lazy thing if
6:47
you're minded that way and of course
6:50
that's because the plant hasn't really
6:51
started full production so up above
6:54
there in the ceiling that you saw a
6:56
moment ago is the Executive offices
6:59
and now we have the the media
7:01
presentation from that day so you've got
7:04
people from the union and you've got
7:05
people from the company and then you've
7:08
got the presentation of the car so one
7:11
of the ones that they just finished
7:12
comes down through the line or possibly
7:14
a prototype that was made months ago
7:17
it's impossible to tell and there's your
7:19
new grand
7:21
therapy now that's Governor gretan
7:23
Whitmer and she actually did a lot to
7:26
make sure this plant got upgraded as it
7:28
was and was just hugging the head of the
7:31
company Sergio
7:33
Marion and she's going to give a little
7:35
speech but we're not going to listen to
7:37
it because the video is just about over
7:41
thanks for listening
